Hematology
Equipment


XN-3100

Hematologia - Sysmex - XN-3100_2 (Rev. 10-23) (1).png

This bench top unit includes two co-primary hematology analytical modules integrated with a SP-50, 5th generation slidemaker-stainer.



The DI-60 cell image analyzer and a floor-standing wagon for system and reagents are optional upgrades. The XN-3100 provides advanced clinical parameters, including NRBCs with every CBC, Immature Granulocytes with every diff, RET-He within the Reticulocyte profile and a fluorescent platelet channel for the Immature Platelet Fraction (IPF).



The series-wide compact design delivers a smaller footprint for increased physical productivity.

​

​Sysmex XN-3100 Automated Hematology Analyzer Overview:

​

  • Two XN-10 Analyzers.

  • Smart sampler - for automated rerun/reflex testing.

  • Slidemaker-stainer (SP-50).

  • Onboard decision rules.

  • Body fluid mode.

  • PLT-F (fluorescent platelet) discrete testing channel.

  • Reticulocyte channel.

  • Status alert light.

  • Cell Image Analyzer (DI-60) – optional.

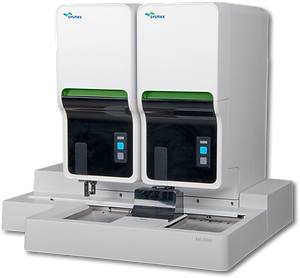

XN-2000

An integrated co-primary hematology system with two analytical modules capable of processing 200 samples per hour. Provides advanced clinical parameters:

​

  • Leukopoietic indicators—Immature granulocytes with every differential.​

  • Erythropoietic indicators—Nucleated RBC with every CBC, reticulocyte hemoglobin (RET-He) and immature reticulocyte fraction (IRF).

Hematologia - Sysmex - XN-2000 Left side (Rev. 10-23).png
Hematologia - Sysmex - XN-2000 Left side_1 (Rev. 10-23).png

  • Thrombopoietic indicators—Immature platelet fraction (IPF) and a fluorescent platelet count (PLT-F) designed for very low platelet counts.



The series-wide compact design delivers a smaller footprint for increased physical productivity. Sysmex’s leading-edge technology and unmatched expertise deliver the tools you need to build the lab of tomorrow.

XN-1500

Hematologia - Sysmex - XN-1500.png

We have combined our market-leading XN-Series analyzer with a brand-new slide maker/stainer in an all-in-one workstation. If an analysis result leads to a smear, it is performed without manual intervention.



The result is consistent smears with a beautiful cell monolayer that makes further microscopic diagnostics as easy and powerful as possible. Add a DI-60, our digital imaging analyzer, and microscopic analysis can be performed automatically, too.

Reflex testing occurs within the same loop, and so does the smear preparation when it is needed. Similar to extended measurements, smears are only initiated if they offer additional diagnostic value.



The analysis profile is extended automatically to include smear-making and staining, but you may also order this upfront, for instance, with known special samples.

Hematologia - Sysmex - XN-1500_5.png

XN-1000

Capable of processing 100 samples per hour. Onboard decision rules and advanced parameters are standard offerings. Provides advanced clinical parameters:

​

  • Leukopoietic indicators—Immature granulocytes with every differential.​

  • Erythropoietic indicators—Nucleated RBC with every CBC, reticulocyte hemoglobin (RET-He) and immature reticulocyte fraction (IRF).

Hematologia - Sysmex - XN-1000 green (Rev. 10-23).png

XN-550

The introduction of the XN-Series hematology analyzers has helped Sysmex become the market leader in CBC testing performed by large and midvolume

labs.



Now XN-L brings the same clinical and operational values to low and medium volume labs.

​

Sysmex XN-L automated hematology analyzers offer expanded clinical value.


​

Hematologia - Sysmex - XN-550_2.png
Hematologia - Sysmex - XN-550 (Rev. 10-23).png

XN-L brings the same clinical and operational values to low and medium volume labs with automated hematology analyzers offer expanded clinical value.



LOW WBC application (Standard) improves reliability of analysis, XN-L provides a 6 part differential (including Immature Granulocytes) on every sample aiding in the assessment of sepsis and other hematological disorders, Onboard Rules provide efficient rerun, reflex based on your own criteria.



Reticulocyte profile and Body Fluid analysis are also available.

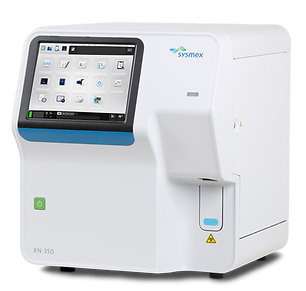

XN-350

XN-L brings the same clinical and operational values to low and medium volume labs with an automated hematology analyzers that offers an expanded clinical value.

​

Onboard Rules provide efficient rerun and reflex based on your own criteria. Reticulocyte profile and body fluid analysis are also available. It offers the most advanced hematology technology for the community clinical laboratory with the same technology that is offered for a hospital and reference laboratory.

Hematologia - Sysmex - XN-350.png

A comprehensive reticulocyte analysis for better management of anemias - added value.

​

Rules system that allows automatic repetition according to laboratory criteria.



The IG parameter is a biomarker of inflammation and infection that can contribute to the diagnosis of sepsis among other processes.

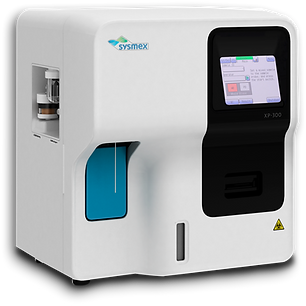

XP-300

Hematologia - Sysmex - XP-300 angle (Rev. 10-23).png

With its simplified operation, the XP-300 is an ideal hematology analyzer for a clinic satellite laboratory. It provides a CBC with 8 reportable parameters and 3-part WBC Differential, which includes an Absolute Neutrophil Count (ANC).



The results include histograms for WBC, RBC and PLT.



The system provides a high level of accuracy through the use of automatic floating discriminators. Built on reliable Sysmex technology, it features a simple start-up menu and single button selection for sampling and daily maintenance with a compact, space-saving design.
